E-Bike Lighting Controller
Lighting Controller 4.png
Lighting Controller 3.png
Lighting Controller 5.png
E-Bike Lighting Controller
Lighting Controller 4.png
Lighting Controller 3.png
Lighting Controller 5.png

E-bike Lighting Controller

$179.00

Elevate your ride with the HV Lighting Controller kit. Whether you're enhancing safety, style, or functionality, this controller delivers the ultimate lighting experience. Powers a wide range of lights, including 12V headlights, turn signals, brake lights and even neopixel WS2812 led strips.

Elevate your ride with the HV Lighting Controller kit. Whether you're enhancing safety, style, or functionality, this controller delivers the ultimate lighting experience. Powers a wide range of lights, including 12V headlights, turn signals, brake lights and even neopixel WS2812 led strips.

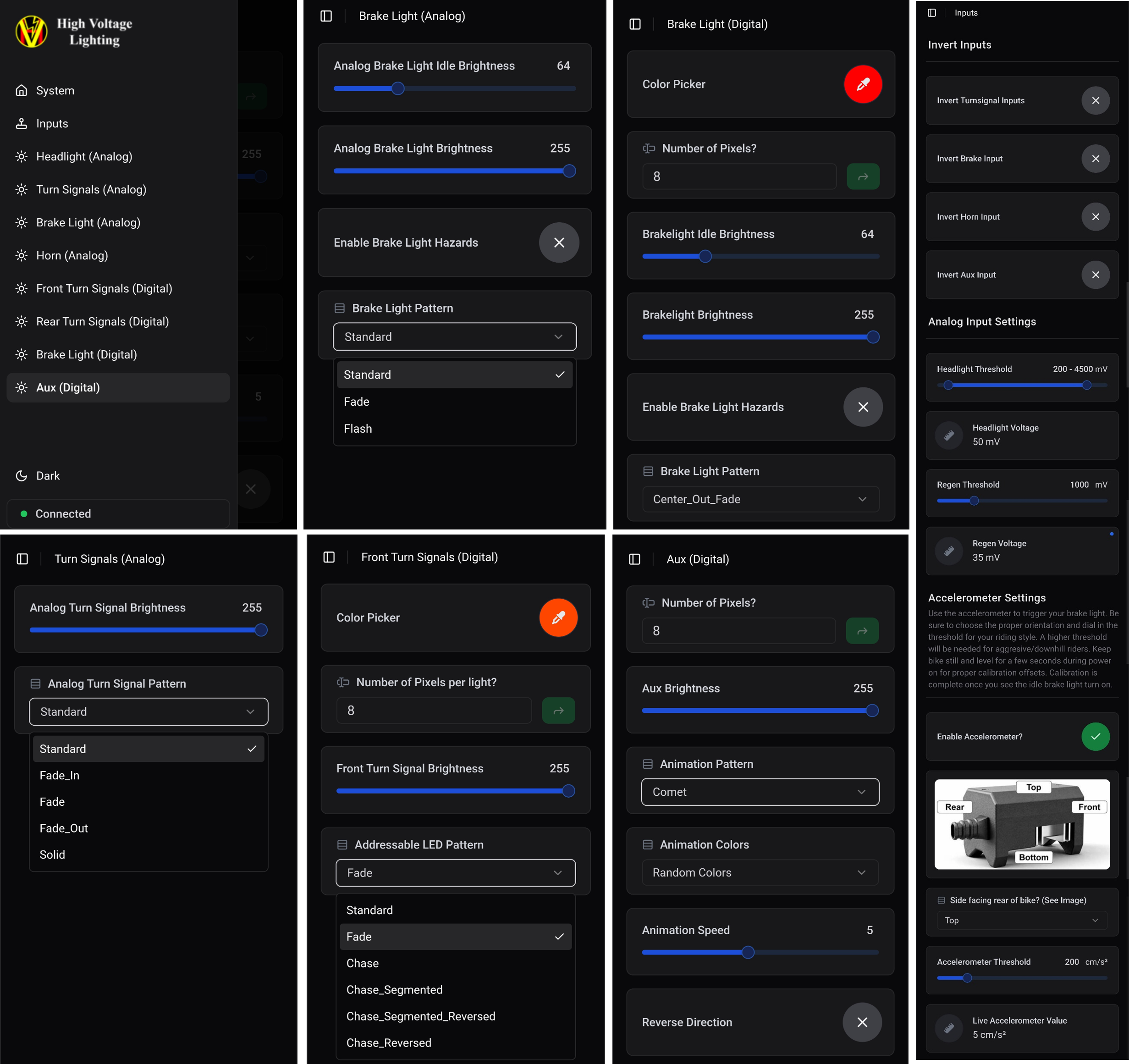

Customize with the Built-in Web Server

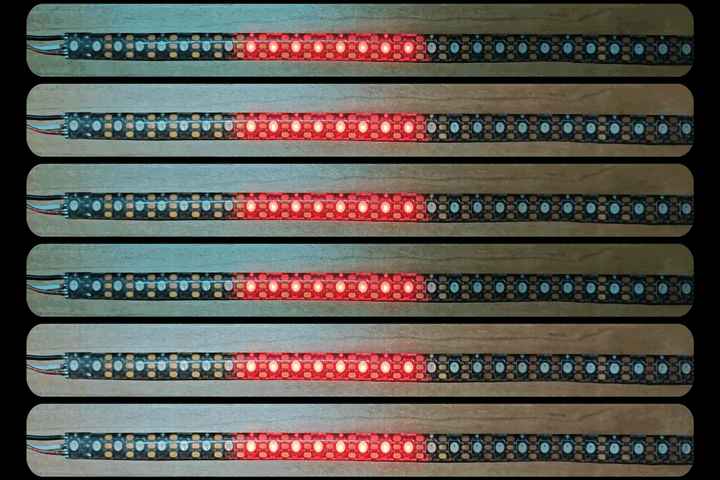

Turn Signal Patterns

Turn Signal Patterns

Controller Connections

Features

Outputs

  • 5 Analog Outputs: Powerful 12v outputs for headlights, turn signals, brake lights, and a horn with precise PWM control for smooth dimming and reliable performance.

  • 4 Addressable Outputs: Create vibrant, customizable lighting with WS2812B / NeoPixel LEDs for front/rear turn signals, brake and auxiliary lights.

  • Advanced Headlight Control: Turn affordable, easy to find 12V lights into an advanced headlight. Quick half presses of the headlight button cycles through different brightness levels. Configure the number of levels and the brightness of each level to your liking.

  • High Beam Control: The horn output can be repurposed to power a second headlight. Configure the second headlight to mimic the first one or have it turn on at specific level to use as a high beam.

Inputs

  • 2 Analog Inputs (0-5V): Adjust headlight brightness with a potentiometer or trigger brake lights with a regen throttle.

  • 6 Digital Inputs (3.3V/5V): Seamlessly integrate switches for headlights, turn signals, brakes, horn, and more.

  • Built-in Accelerometer: Automatically trigger brake lights based on deceleration (experimental feature). Turns simple and affordable brake lights into smart and easy to wire brake lights.

WiFi-Enabled Customization

  • Connect to the built-in web server using any WiFi device to configure settings effortlessly.

  • Adjust brightness, LED colors, and animation patterns for a personalized look.

  • Fine-tune input behaviors, including regen thresholds and accelerometer sensitivity, for optimal performance.

Power

  • Wide Input Range: Supports 20-90VDC, perfect for most light electric vehicles.

  • 72W Total Power: Shared across 12V and 5V outputs, protected by a 6A self-resettable fuse.

Specifications

Electrical

  • System Power: 72W (Shared between 12V & 5V outputs)

  • Input Voltage: 20-90VDC

  • 12V Output: 6A max

  • 5V Output: 5A max

  • Protection: 6A self-resettable PTC fuse

  • Quiescent current: <10mA with power switch off

Analog Outputs

  • Voltage: 0-12V PWM @ 400Hz

  • Current: 6A peak per channel (<4A continuous recommended)

  • Mosfets: P-Channel High Side, 12A

Addressable Outputs

  • Type: WS2812B / Neopixel Compatible

  • Voltage: 5V

  • Current: 5A max

Analog Inputs

  • Voltage: 0 - 5V (Variable)

Digital Inputs

  • Voltage: 3.3V/5V compatible

Dimensions

  • 110mm (L) x 70mm (W) x 72mm (H)

  • Material: 3D Printed Matte Black PETG Housing

What's Included: Controller with pre-installed DC-DC converter & handlebar switch.

Not Included: Lighting, wiring, splitters etc.
