This listing is for the EggRider V2 Bluetooth Display - Bafang (UART) edition with the green round 5-pin female connector. Check your bike’s controller protocol and mating connector before ordering.

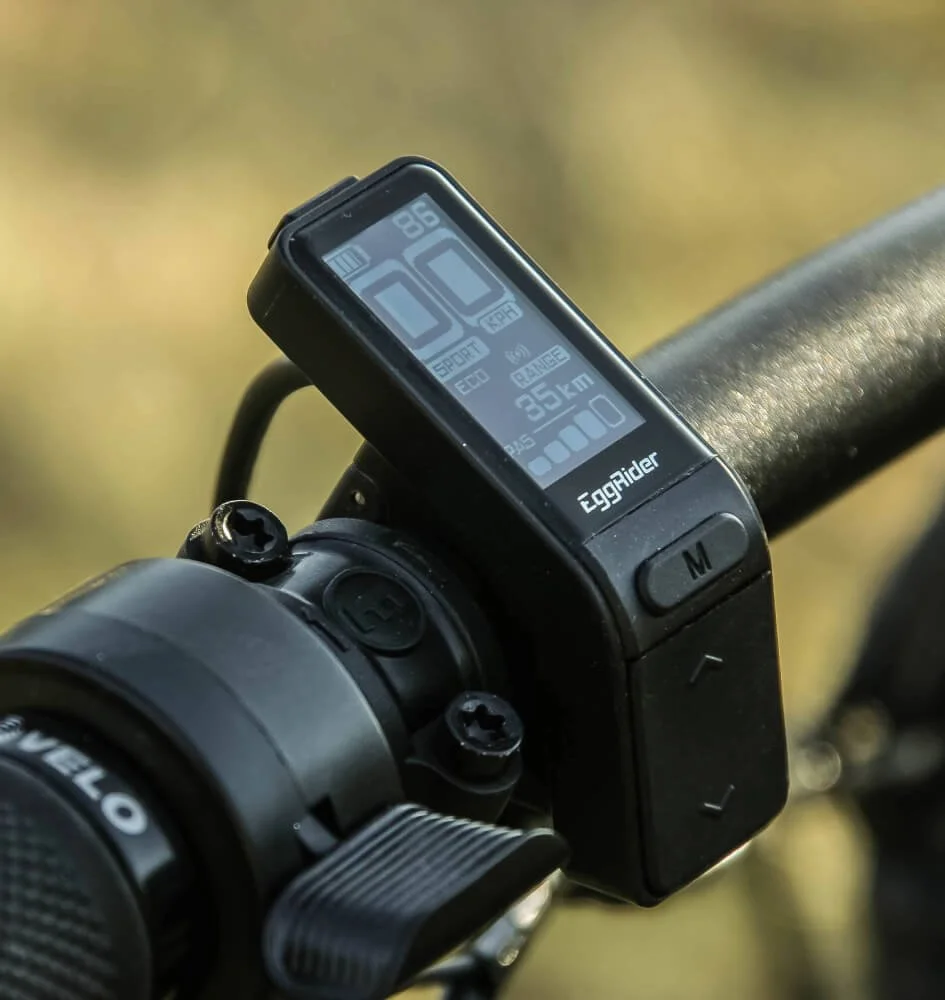

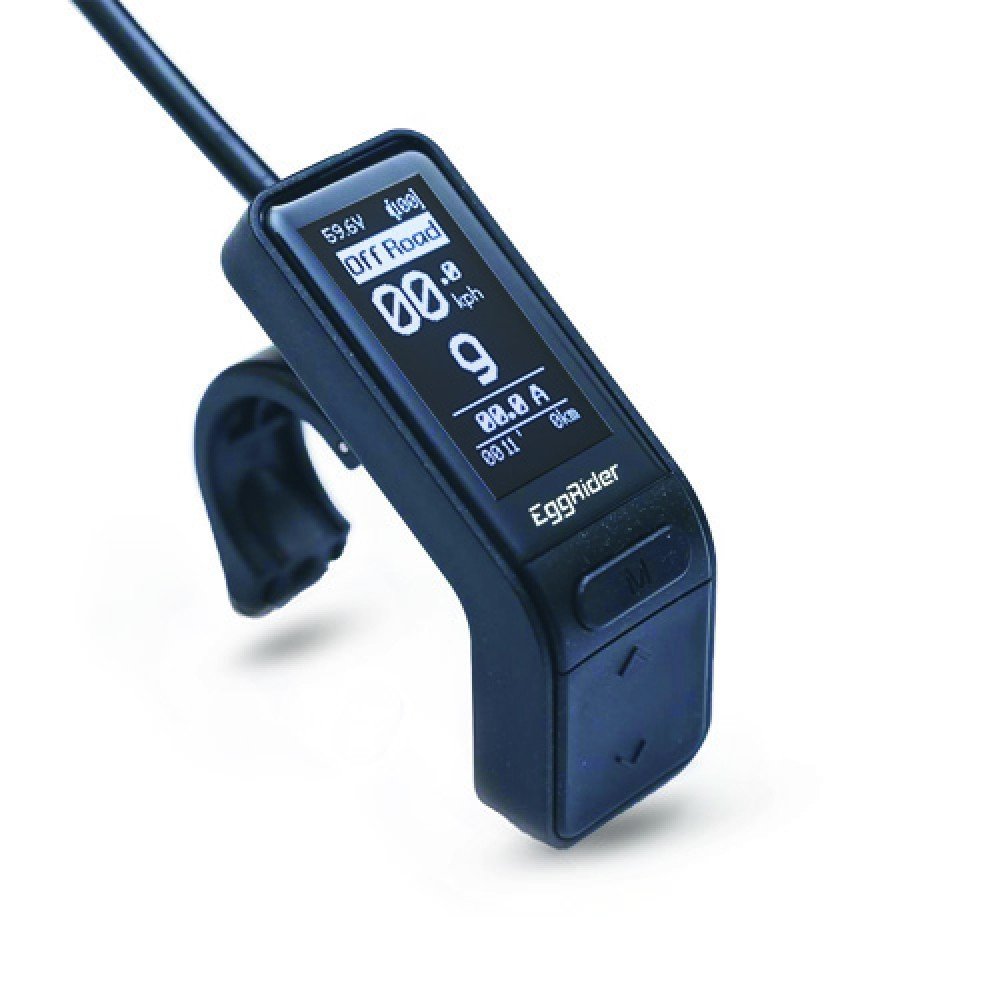

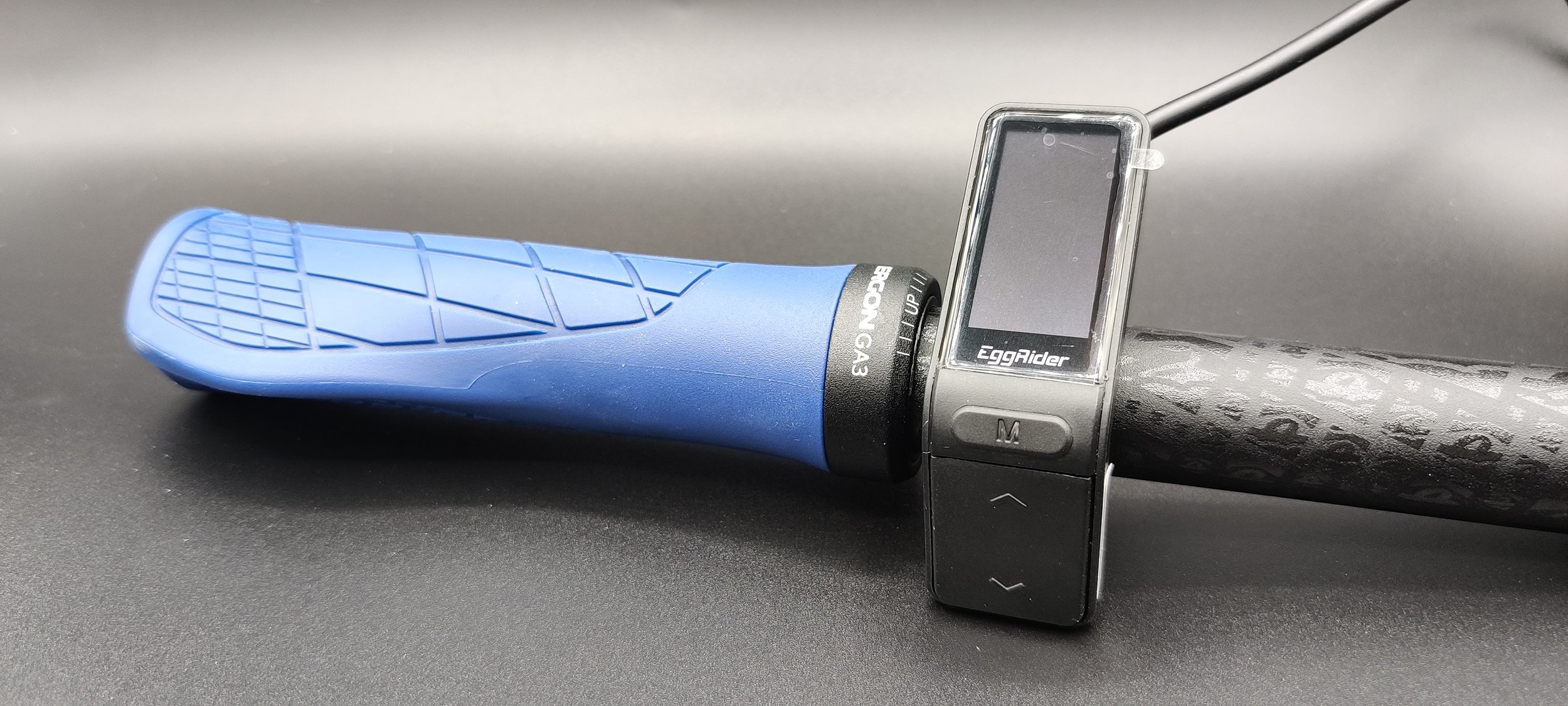

Keep your cockpit compact and your ride information close at hand. The EggRider V2 combines an OLED display and handlebar controls in a lightweight unit, with Bluetooth connectivity to the EggRider app for iOS and Android.
View speed, battery level, power and distance without using your phone.
Choose from three display layouts.
Switch between two configurable Road/OffRoad profiles using the handlebar controls. Available settings depend on your controller.
Use the mobile app for configuration, ride charts and a larger dashboard.
Edition: Bafang UART
Display-side connector: green round 5-pin female
Dimensions: 75 × 47 × 35 mm
Weight: 31 g
Handlebar mounting diameter: 22.2 mm
Connectivity: Bluetooth Low Energy (BLE)
Protection: IP65 dust and water resistance; not waterproof
Maximum direct supply: 60 V, for batteries up to 52 V nominal
For compatible Bafang UART systems only. Not compatible with Bafang CANbus systems, including CANbus versions of Bafang motors. Confirm that your controller uses UART and that its display cable has the correct mating connector and pinout for this green 5-pin female plug. Connector colour, motor name or a matching plug alone does not guarantee compatibility.
Never connect the display directly to a battery exceeding 60 V when fully charged. Diode-based dual-battery systems are not supported.
Review the official compatibility guide before purchase:
https://manual.eggrider.com/compatibility/
Product details and setup guidance:
https://eggrider.com/en/eggrider-v2/
Road/OffRoad profile names do not establish road legality. Use settings permitted for your bike and riding location.
