Kit Overview

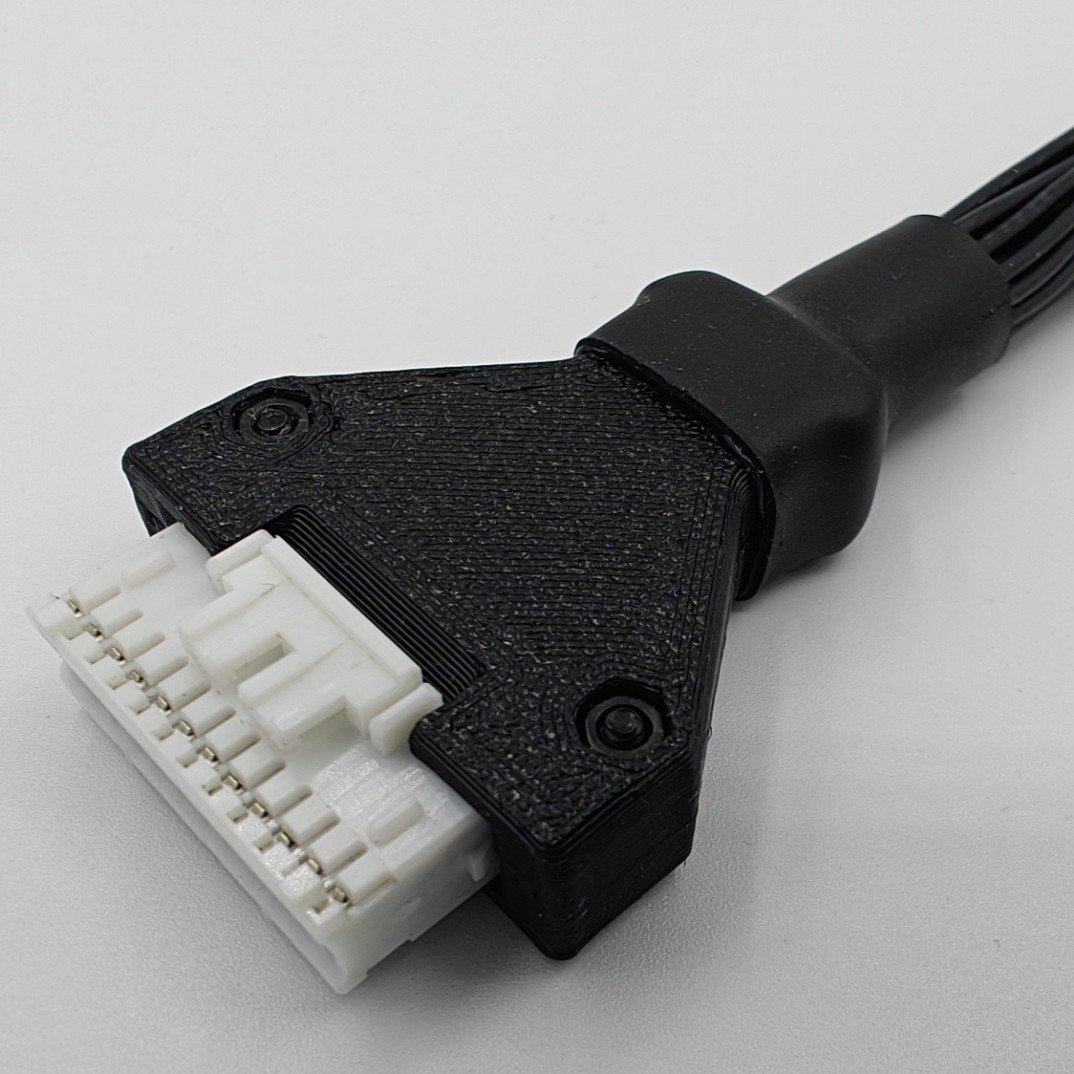

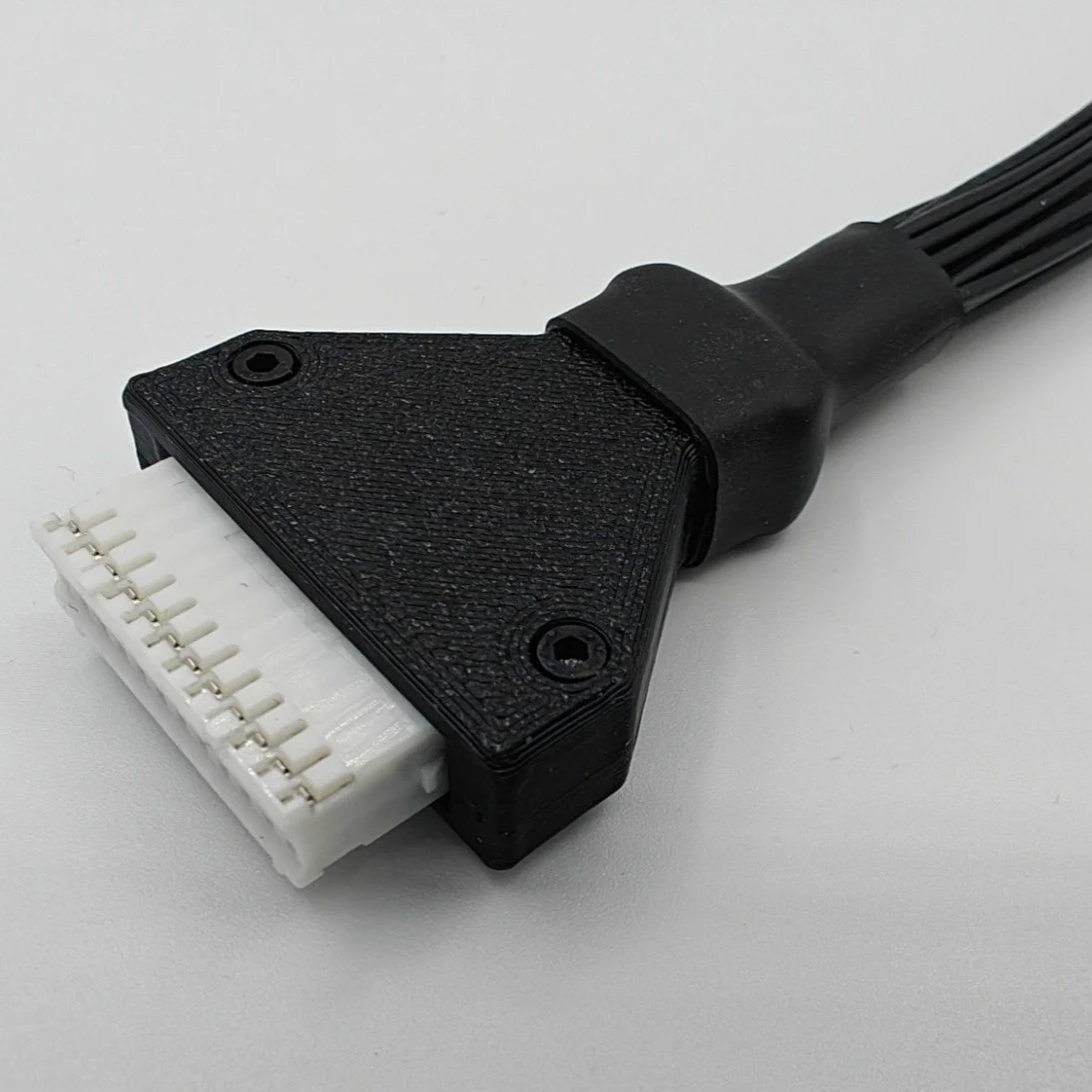

This kit includes components needed to build your own 24‑pin JST harness for the ASI BAC355, BAC555, BAC800 or BAC855 controllers.
Compatible with the HV Universal ASI BAC855 Mount.
••••••••••••••••••••••••••••••
Items Included
JST 24‑pin connector housing (PADP‑24V‑1‑S)
3D‑printed cover with required screws, nuts & heat shrink

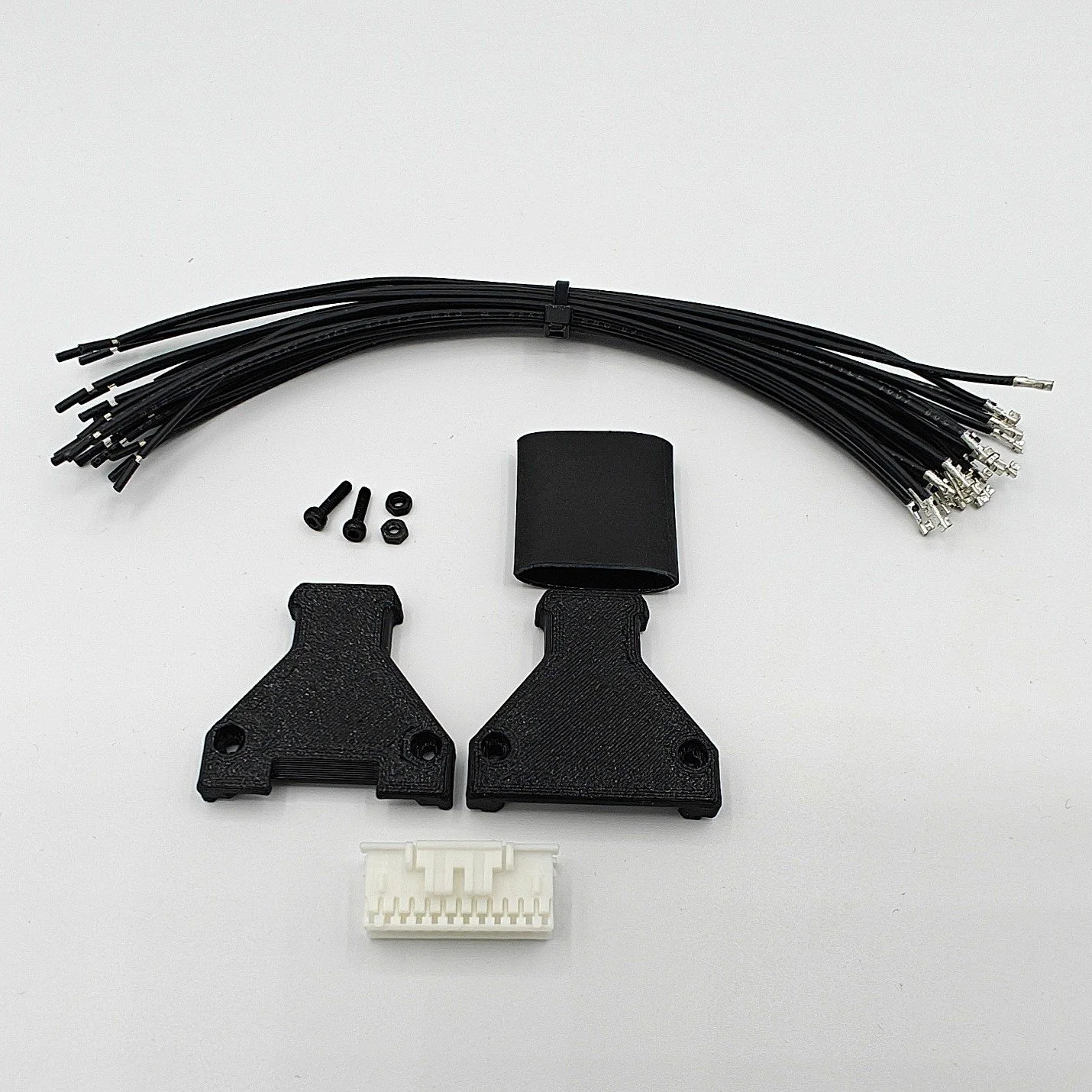

Pre‑crimped 24 gauge wires (choose one set):
Option A — All Black
• 24 Black

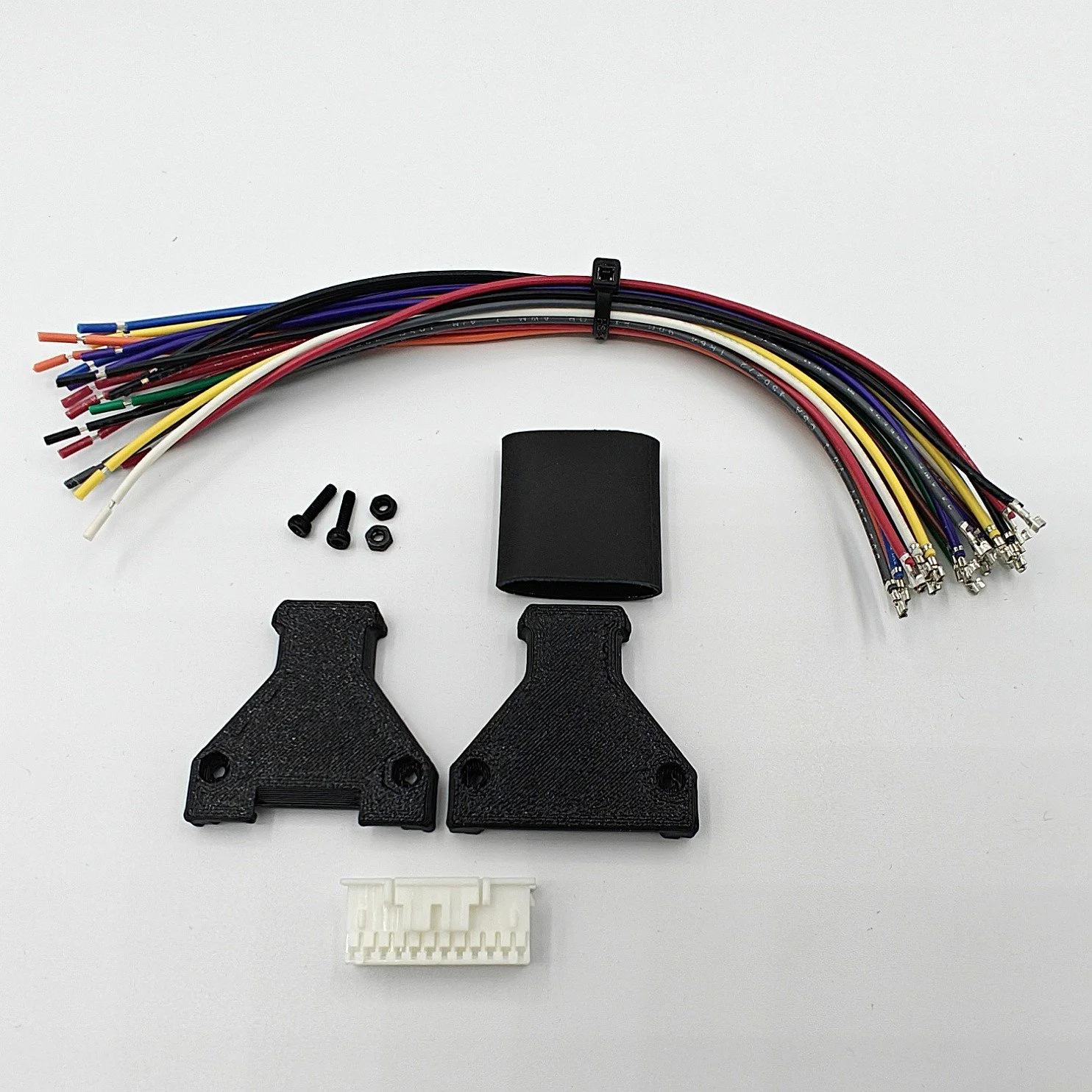

Option B — Color Set
• 4 Black
• 4 Red
• 2 Green
• 2 Blue
• 2 Yellow
• 2 Orange
• 2 White
• 2 Brown
• 2 Gray
• 2 Purple
••••••••••••••••••••••••••••••
Notes:
Kit comes unassembled so user can customize the pinout/colors to their liking.
Assembled pictures are for reference only.
BAC855 controller and controller mount not Included (controller mount sold separately)
No wiring diagrams or wiring assistance will be provided.
As always, we highly recommend purchasing the full ASI Controller kits from us if you are not comfortable with the wiring/programming and just want something that works out of the box. This kit is for someone who does not mind the troubles that come with DIY to save some money.
The 3D‑printed cover can be filled with electronics‑grade silicone to improve water resistance.
Warning: Do not use with HV supplied controller kits, doing so will void the warranty.
User assumes responsibility of any damage or injury caused by incorrect wiring.
